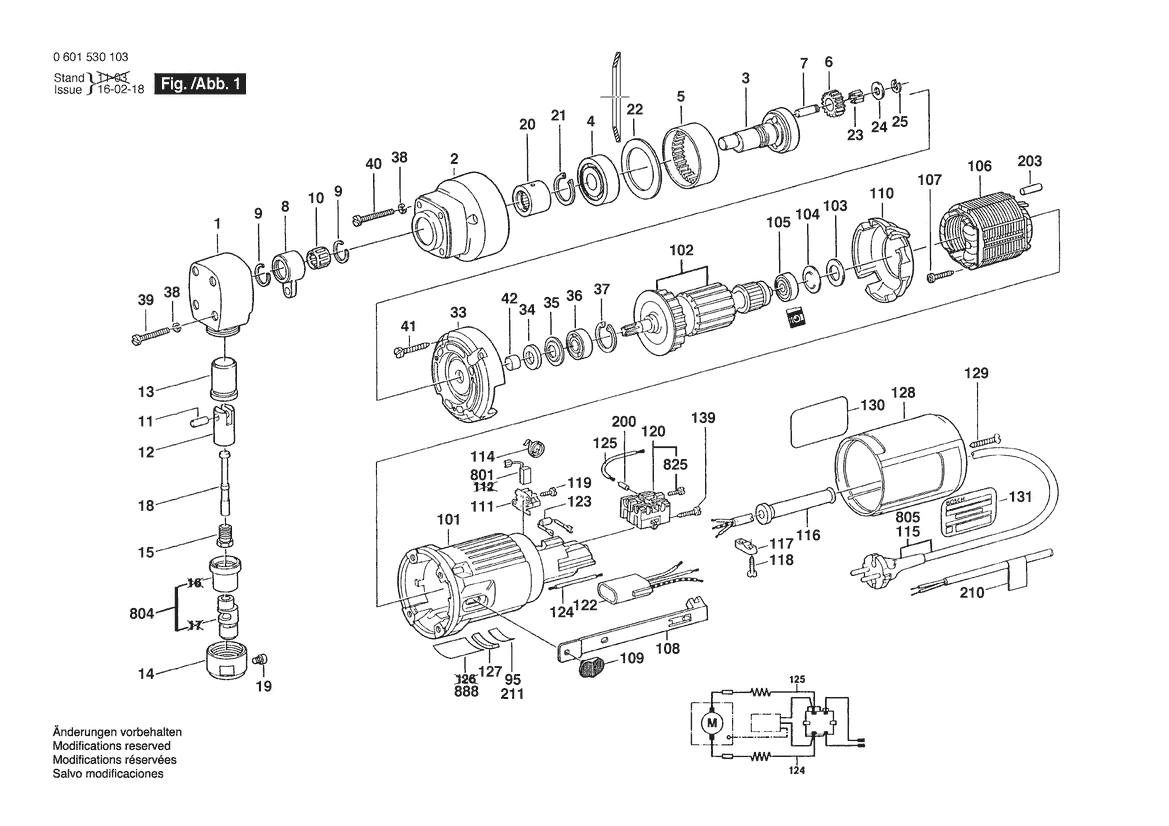

0 601 530 103
Shim 1,2 MM THICK
-
Spare part number: 1 600 100 611
Position: 24
Availability: 2
Price group: 11
-
Brush Holder
-
Spare part number: 1 600 A00 3G4
Position: 111
Availability: 2
Price group: 15
-
Nameplate
-
Spare part number: 1 601 11A 3H3
Position: 888
Availability: 1
Price group: 13
-
Spiral Spring
-
Spare part number: 1 604 652 013
Position: 114
Availability: 2
Price group: 11
-
Cable Clip
-
Spare part number: 1 611 035 005
Position: 117
Availability: 1
Price group: 12
-
Lens Head Screw 3X10 ST
-
Spare part number: 1 613 435 034
Position: 119
Availability: 4
Price group: 10
-
groove ball bearing 20X42X12
-
Spare part number: 1 900 900 274
Position: 4
Availability: 1
Price group: 32
-
Ball Bearing 7X22X7
-
Spare part number: 1 900 905 018
Position: 105
Availability: 1
Price group: 28
-
Needle Roller
-
Spare part number: 1 903 201 520
Position: 23
Availability: 20
Price group: 10
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Felt Washer
-
Spare part number: 2 600 108 002
Position: 34
Availability: 1
Price group: 12
-
Shim
-
Spare part number: 2 600 150 004
Position: 104
Availability: 1
Price group: 12
-
Retaining ring
-
Spare part number: 2 600 224 009
Position: 9
Availability: 2
Price group: 11
-
Retaining ring
-
Spare part number: 2 600 224 009
Position: 9
Availability: 2
Price group: 11
-
Receptacle
-
Spare part number: 2 600 400 008
Position: 42
Availability: 1
Price group: 11
-
Bushing
-
Spare part number: 2 600 422 005
Position: 13
Availability: 1
Price group: 28
-
Cupped Washer
-
Spare part number: 2 600 500 002
Position: 35
Availability: 1
Price group: 11
-
Housing Cover BLUE
-
Spare part number: 2 600 508 036
Position: 128
Availability: 1
Price group: 22
-
Disc Spring
-
Spare part number: 2 600 550 017
Position: 22
Availability: 1
Price group: 18
-
Grommet Ø8,3-Ø9,4X95 MM
-
Spare part number: 2 600 703 011
Position: 116
Availability: 1
Price group: 14
-
groove ball bearing 9X24X7
-
Spare part number: 2 600 905 021
Position: 36
Availability: 1
Price group: 21
-
Needle-Roller Cage
-
Spare part number: 2 600 913 035
Position: 10
Availability: 1
Price group: 23
-
Needle bearing
-
Spare part number: 2 600 914 011
Position: 20
Availability: 1
Price group: 29
-
Cover Disc
-
Spare part number: 2 601 328 045
Position: 110
Availability: 1
Price group: 12
-
Connecting Rod
-
Spare part number: 2 602 001 001
Position: 8
Availability: 1
Price group: 39
-
Switch Handle BLACK
-
Spare part number: 2 602 026 015
Position: 109
Availability: 1
Price group: 11
-
Adjusting Slide BLUE
-
Spare part number: 2 602 319 005
Position: 108
Availability: 1
Price group: 11
-
Bearing bolt
-
Spare part number: 2 603 100 003
Position: 11
Availability: 1
Price group: 13
-
Power piston
-
Spare part number: 2 603 104 001
Position: 12
Availability: 1
Price group: 39
-
Bearing bolt
-
Spare part number: 2 603 105 021
Position: 7
Availability: 2
Price group: 13
-
Socket head cap screw M3X6,5-4.8
-
Spare part number: 2 603 410 001
Position: 825
Availability: 4
Price group: 11
-
Hex Socket Head Cap Screw
-
Spare part number: 2 603 414 003
Position: 19
Availability: 1
Price group: 19
-
Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
-
Spare part number: 2 603 435 015
Position: 107
Availability: 2
Price group: 12
-
Hollow Bolt
-
Spare part number: 2 603 455 006
Position: 15
Availability: 1
Price group: 14
-
Screw 4X16
-
Spare part number: 2 603 490 022
Position: 118
Availability: 2
Price group: 10
-
Armature 220-230V
-
Spare part number: 2 604 010 608
Position: 102
Availability: 1
Price group: 43
-
Field 220-230V
-
Spare part number: 2 604 220 445
Position: 106
Availability: 1
Price group: 32
-
Carbon-Brush Set
-
Spare part number: 2 604 320 912
Position: 801
Availability: 1
Price group: 22
-
Connecting Cable L=68MM WHITE
-
Spare part number: 2 604 448 039
Position: 124
Availability: 1
Price group: 12
-
Connecting Cable L=125MM WHITE
-
Spare part number: 2 604 448 040
Position: 125
Availability: 1
Price group: 13
-
Motor Housing BLUE
-
Spare part number: 2 605 108 051
Position: 101
Availability: 1
Price group: 29
-
Gear Cover
-
Spare part number: 2 605 500 042
Position: 1
Availability: 1
Price group: 38
-
Gear Housing
-
Spare part number: 2 605 806 312
Position: 2
Availability: 1
Price group: 38
-
Eccentric Shaft
-
Spare part number: 2 606 122 001
Position: 3
Availability: 1
Price group: 46
-
Ring Gear Z=66
-
Spare part number: 2 606 334 040
Position: 5
Availability: 1
Price group: 32
-
Switch
-
Spare part number: 2 607 200 674
Position: 120
Availability: 1
Price group: 27
-
Suppression Filter
-
Spare part number: 2 607 329 104
Position: 122
Availability: 1
Price group: 22
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Socket head cap screw DIN 84-BM4X30-8.8
-
Spare part number: 2 910 021 134
Position: 40
Availability: 3
Price group: 11
-
Socket head cap screw DIN 84-BM4X40-8.8
-
Spare part number: 2 910 021 138
Position: 39
Availability: 4
Price group: 13
-
Tapping Screw DIN 7971-BZ2,9X16
-
Spare part number: 2 910 211 007
Position: 139
Availability: 1
Price group: 11
-
Tapping Screw DIN 7982-ST3,9X22C-H
-
Spare part number: 2 910 601 321
Position: 129
Availability: 1
Price group: 11
-
Torx Oval-Head Screw
-
Spare part number: 2 914 201 508
Position: 41
Availability: 4
Price group: 10
-
Locking washer 5 DIN 6799
-
Spare part number: 2 916 080 908
Position: 25
Availability: 2
Price group: 10
-
Spring retaining ring DIN 471 20X1,2
-
Spare part number: 2 916 650 011
Position: 21
Availability: 1
Price group: 12
-
Spring retaining ring DIN 472-24X1,2 MM
-
Spare part number: 2 916 660 008
Position: 37
Availability: 1
Price group: 12
-
Spring Lock Washer DIN 128-A4-FST
-
Spare part number: 2 916 690 003
Position: 38
Availability: 7
Price group: 10
-
Spring Lock Washer DIN 128-A4-FST
-
Spare part number: 2 916 690 003
Position: 38
Availability: 7
Price group: 10
-
Sticker
-
Spare part number: 3 601 110 373
Position: 131
Availability: 1
Price group: 15
-
Sticker SHADOW SIDE
-
Spare part number: 3 601 110 385
Position: 130
Availability: 1
Price group: 16
-
Union Nut
-
Spare part number: 3 603 340 017
Position: 14
Availability: 1
Price group: 34
-
Power supply cord
-
Spare part number: 3 604 460 192
Position: 805
Availability: 1
Price group: 31
-
Suppression Filter
-
Spare part number: 3 604 465 000
Position: 123
Availability: 2
Price group: 17
-
Intermediate Flange
-
Spare part number: 3 605 700 042
Position: 33
Availability: 1
Price group: 43
-
Cylindrical Gear Z=30
-
Spare part number: 3 606 316 057
Position: 6
Availability: 2
Price group: 20
-
Nibbling Punch
-
Spare part number: 3 608 639 026
Position: 18
Availability: 1
Price group: 33
-
Lower Die
-
Spare part number: 3 608 639 029
Position: 17
Availability: 1
Price group: 50
-
1
Spare parts in cart
70 Parts found
Sort by
Description
Pos. 1 | Gear Cover
2 605 500 042
-
Pos. 2 | Gear Housing
2 605 806 312
-
Pos. 3 | Eccentric Shaft
2 606 122 001
-
Pos. 4 | groove ball bearing 20X42X12
1 900 900 274
-
Pos. 5 | Ring Gear Z=66
2 606 334 040
-
Pos. 6 | Cylindrical Gear Z=30
3 606 316 057
-
Pos. 7 | Bearing bolt
2 603 105 021
-
Pos. 8 | Connecting Rod
2 602 001 001
-
Pos. 9 | Retaining ring
2 600 224 009
-
Pos. 10 | Needle-Roller Cage
2 600 913 035
-
Pos. 11 | Bearing bolt
2 603 100 003
-
Pos. 12 | Power piston
2 603 104 001
-
Pos. 13 | Bushing
2 600 422 005
-
Pos. 14 | Union Nut
3 603 340 017
-
Pos. 15 | Hollow Bolt
2 603 455 006
-
Pos. 17 | Lower Die
3 608 639 029
-
Pos. 18 | Nibbling Punch
3 608 639 026
-
Pos. 19 | Hex Socket Head Cap Screw
2 603 414 003
-
Pos. 20 | Needle bearing
2 600 914 011
-
Pos. 21 | Spring retaining ring DIN 471 20X1,2
2 916 650 011
-
Pos. 22 | Disc Spring
2 600 550 017
-
Pos. 23 | Needle Roller
1 903 201 520
-
Pos. 24 | Shim 1,2 MM THICK
1 600 100 611
-
Pos. 25 | Locking washer 5 DIN 6799
2 916 080 908
-
Pos. 33 | Intermediate Flange
3 605 700 042
-
Pos. 34 | Felt Washer
2 600 108 002
-
Pos. 35 | Cupped Washer
2 600 500 002
-
Pos. 36 | groove ball bearing 9X24X7
2 600 905 021
-
Pos. 37 | Spring retaining ring DIN 472-24X1,2 MM
2 916 660 008
-
Pos. 38 | Spring Lock Washer DIN 128-A4-FST
2 916 690 003
-
Pos. 39 | Socket head cap screw DIN 84-BM4X40-8.8
2 910 021 138
-
Pos. 40 | Socket head cap screw DIN 84-BM4X30-8.8
2 910 021 134
-
Pos. 41 | Torx Oval-Head Screw
2 914 201 508
-
Pos. 42 | Receptacle
2 600 400 008
-
Pos. 101 | Motor Housing BLUE
2 605 108 051
-
Pos. 102 | Armature 220-230V
2 604 010 608
-
Pos. 103 | Shim 0,5 MM
2 600 101 020
-
Pos. 103 | Shim 0,2 MM
2 600 101 022
-
Pos. 103 | Shim 0,3 MM
2 600 101 023
-
Pos. 104 | Shim
2 600 150 004
-
Pos. 105 | Ball Bearing 7X22X7
1 900 905 018
-
Pos. 106 | Field 220-230V
2 604 220 445
-
Pos. 107 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
2 603 435 015
-
Pos. 108 | Adjusting Slide BLUE
2 602 319 005
-
Pos. 109 | Switch Handle BLACK
2 602 026 015
-
Pos. 110 | Cover Disc
2 601 328 045
-
Pos. 111 | Brush Holder
1 600 A00 3G4
-
Pos. 114 | Spiral Spring
1 604 652 013
-
Pos. 116 | Grommet Ø8,3-Ø9,4X95 MM
2 600 703 011
-
Pos. 117 | Cable Clip
1 611 035 005
-
Pos. 118 | Screw 4X16
2 603 490 022
-
Pos. 119 | Lens Head Screw 3X10 ST
1 613 435 034
-
Pos. 120 | Switch
2 607 200 674
-
Pos. 122 | Suppression Filter
2 607 329 104
-
Pos. 123 | Suppression Filter
3 604 465 000
-
Pos. 124 | Connecting Cable L=68MM WHITE
2 604 448 039
-
Pos. 125 | Connecting Cable L=125MM WHITE
2 604 448 040
-
Pos. 128 | Housing Cover BLUE
2 600 508 036
-
Pos. 129 | Tapping Screw DIN 7982-ST3,9X22C-H
2 910 601 321
-
Pos. 130 | Sticker SHADOW SIDE
3 601 110 385
-
Pos. 131 | Sticker
3 601 110 373
-
Pos. 139 | Tapping Screw DIN 7971-BZ2,9X16
2 910 211 007
-
Pos. 801 | Carbon-Brush Set
2 604 320 912
-
Pos. 804 | Lower Die
2 608 639 021
-
Pos. 804 | Nibbling Punch
2 608 639 022
-
Pos. 804 | Lower Die
2 608 639 900
-
Pos. 804 | Lower Die
2 608 639 902
-
Pos. 805 | Power supply cord
3 604 460 192
-
Pos. 825 | Socket head cap screw M3X6,5-4.8
2 603 410 001
-
Pos. 888 | Nameplate
1 601 11A 3H3
-
