3 601 JJ5 080
Gear Box
-
Spare part number: 1 600 A01 006
Position: 45
Availability: 1
Price group: 41
1,183,000.00 D*
Prices shown are gross prices including VAT
Electronics Module
-
Spare part number: 1 600 A01 6CZ
Position: 16
Availability: 1
Price group: 22
115,000.00 D*
Prices shown are gross prices including VAT
Cover Panel
-
Spare part number: 1 600 A01 6ML
Position: 17
Availability: 1
Price group: 10
8,000.00 D*
Prices shown are gross prices including VAT
Switchover Unit
-
Spare part number: 1 600 A01 C95
Position: 32
Availability: 1
Price group: 10
17,000.00 D*
Prices shown are gross prices including VAT
Housing
-
Spare part number: 1 600 A01 RC8
Position: 1
Availability: 1
Price group: 28
268,000.00 D*
Prices shown are gross prices including VAT
Housing
-
Spare part number: 1 600 A01 RC8
Position: 1
Availability: 1
Price group: 28
268,000.00 D*
Prices shown are gross prices including VAT
Housing
-
Spare part number: 1 600 A01 RC8
Position: 1
Availability: 1
Price group: 28
268,000.00 D*
Prices shown are gross prices including VAT
Changeover Lever
-
Spare part number: 1 600 A01 RH7
Position: 5
Availability: 1
Price group: 10
15,000.00 D*
Prices shown are gross prices including VAT
Cover unit
-
Spare part number: 1 600 A01 TN9
Position: 7
Availability: 1
Price group: 11
25,000.00 D*
Prices shown are gross prices including VAT
Electronics Module
-
Spare part number: 1 600 A01 ZE2
Position: 665
Availability: 1
Price group: 34
674,000.00 D*
Prices shown are gross prices including VAT
Contact retainer
-
Spare part number: 1 600 A02 3LU
Position: 804
Availability: 1
Price group: 18
77,000.00 D*
Prices shown are gross prices including VAT
Brushless DC motor
-
Spare part number: 1 600 A02 4CL
Position: 802
Availability: 1
Price group: 46
1,635,000.00 D*
Prices shown are gross prices including VAT
Keyless Chuck
-
Spare part number: 1 600 A02 HZ9
Position: 25
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 601 11A 844
Position: 808
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
Spare part number: 1 601 11C 3BC
Position: 9
Availability: 1
Price group: 13
8,000.00 D*
Prices shown are gross prices including VAT
Electronic Module
-
Spare part number: 1 607 233 5G8
Position: 4
Availability: 1
Price group: 46
1,665,000.00 D*
Prices shown are gross prices including VAT
Electronic Module
-
Spare part number: 1 607 233 5LS
Position: 47
Availability: 1
Price group: 33
569,000.00 D*
Prices shown are gross prices including VAT
Electronic Module
-
Spare part number: 1 607 233 5LY
Position: 48
Availability: 1
Price group: 17
148,000.00 D*
Prices shown are gross prices including VAT
Compression Spring
-
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 00
16,000.00 D*
Prices shown are gross prices including VAT
Countersunk-Head Screw M6X23 LEFTHAND THREADS
-
Spare part number: 2 603 421 229
Position: 107
Availability: 1
Price group: 00
17,000.00 D*
Prices shown are gross prices including VAT
Switch
-
Spare part number: 2 607 202 501
Position: 3
Availability: 1
Price group: 00
120,000.00 D*
Prices shown are gross prices including VAT
Torx Oval-Head Screw
-
Spare part number: 2 609 110 353
Position: 101
Availability: 11
Price group: 00
21,000.00 D*
Prices shown are gross prices including VAT
Torx Oval-Head Screw
-
Spare part number: 2 609 110 353
Position: 101
Availability: 11
Price group: 00
21,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: 2 609 110 834
Position: 657/2
Availability: 1
Price group: 00
20,000.00 D*
Prices shown are gross prices including VAT
Clip
-
Spare part number: 2 609 111 584
Position: 657/1
Availability: 1
Price group: 00
28,000.00 D*
Prices shown are gross prices including VAT
Bit holder
-
Spare part number: 2 609 199 748
Position: 658
Availability: 1
Price group: 00
11,000.00 D*
Prices shown are gross prices including VAT
1
2
Spare parts in cart
24 Parts found
Sort by
Description

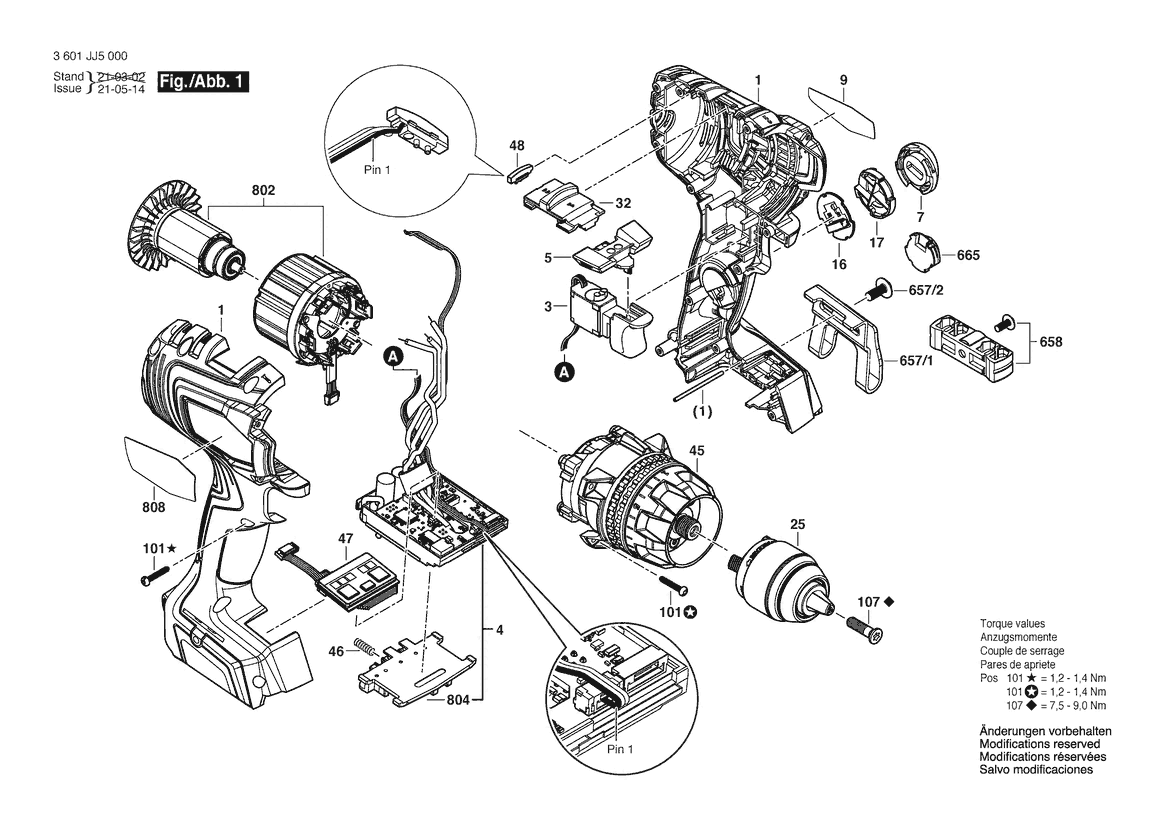

Pos. 1 | Housing
1 600 A01 RC8
-
*Prices shown are gross prices including VAT
Pos. 3 | Switch
2 607 202 501
-
*Prices shown are gross prices including VAT
Pos. 4 | Electronic Module
1 607 233 5G8
-
*Prices shown are gross prices including VAT
Pos. 5 | Changeover Lever
1 600 A01 RH7
-
*Prices shown are gross prices including VAT
Pos. 7 | Cover unit
1 600 A01 TN9
-
*Prices shown are gross prices including VAT
Pos. 9 | Manufacturer's nameplate
1 601 11C 3BC
-
*Prices shown are gross prices including VAT
Pos. 16 | Electronics Module
1 600 A01 6CZ
-
*Prices shown are gross prices including VAT
Pos. 17 | Cover Panel
1 600 A01 6ML
-
*Prices shown are gross prices including VAT
Pos. 25 | Keyless Chuck
1 600 A02 HZ9
-
Pos. 32 | Switchover Unit
1 600 A01 C95
-
*Prices shown are gross prices including VAT
Pos. 45 | Gear Box
1 600 A01 006
-
*Prices shown are gross prices including VAT
Pos. 46 | Compression Spring
1 609 280 477
-
*Prices shown are gross prices including VAT
Pos. 47 | Electronic Module
1 607 233 5LS
-
*Prices shown are gross prices including VAT
Pos. 48 | Electronic Module
1 607 233 5LY
-
*Prices shown are gross prices including VAT
Pos. 101 | Torx Oval-Head Screw
2 609 110 353
-
*Prices shown are gross prices including VAT
Pos. 107 | Countersunk-Head Screw M6X23 LEFTHAND THREADS
2 603 421 229
-
*Prices shown are gross prices including VAT
Pos. 657/1 | Clip
2 609 111 584
-
*Prices shown are gross prices including VAT
Pos. 657/2 | Screw
2 609 110 834
-
*Prices shown are gross prices including VAT
Pos. 658 | Bit holder
2 609 199 748
-
*Prices shown are gross prices including VAT

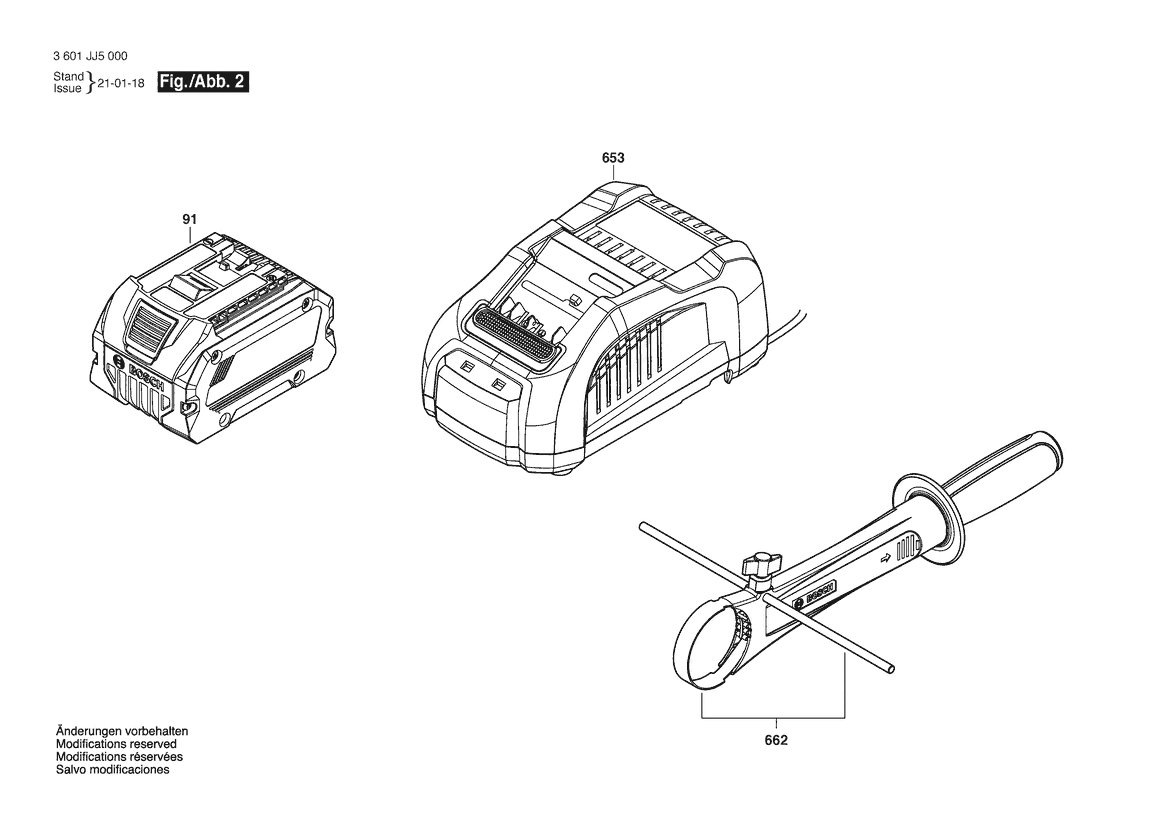

Pos. 662 | Auxiliary Handle
1 602 025 07Y
-
*Prices shown are gross prices including VAT
Pos. 665 | Electronics Module
1 600 A01 ZE2
-
*Prices shown are gross prices including VAT
Pos. 802 | Brushless DC motor
1 600 A02 4CL
-
*Prices shown are gross prices including VAT
Pos. 804 | Contact retainer
1 600 A02 3LU
-
*Prices shown are gross prices including VAT
Pos. 808 | Nameplate
1 601 11A 844
-
* Prices shown are gross prices including VAT
