Cordless Drill Driver
GSR 185-LI | 3 601 JK3 080 | 18 V / 026 - AS
Lubrication instructions
Product information

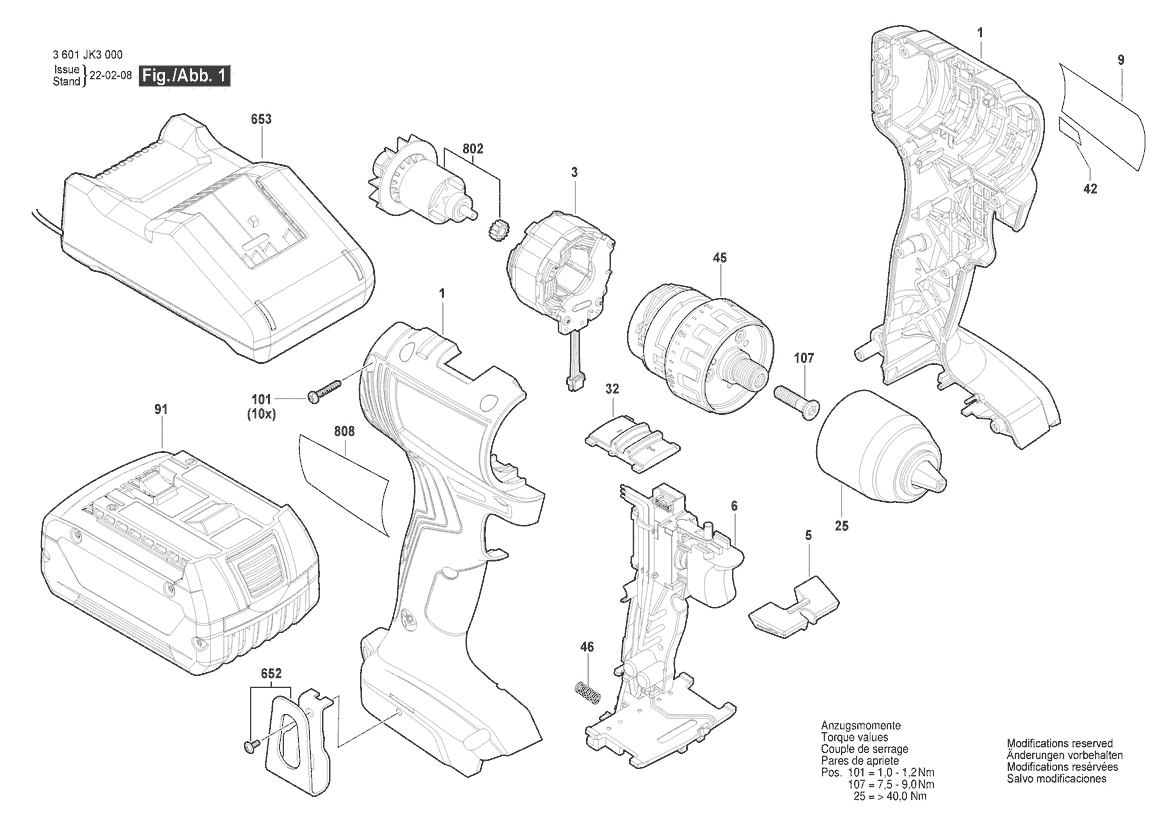

Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 JK3 080
Image 1
Switchover Unit
-
part
Spare part number: 1 600 A01 2MM
Position: 32
Availability: 1
Price group: 10
1.05 S$*
Prices shown are net prices excluding VAT
Changeover Lever
-
Spare part number: 1 600 A01 Z04
Position: 5
Availability: 1
Price group: 13
1.89 S$*
Prices shown are net prices excluding VAT
Gear Box
-
part
Spare part number: 1 600 A01 ZT8
Position: 45
Availability: 1
Price group: 33
28.35 S$*
Prices shown are net prices excluding VAT
Clip
-
Spare part number: 1 600 A02 7W3
Position: 652
Availability: 1
Price group: 13
6.51 S$*
Prices shown are net prices excluding VAT
Keyless Chuck
-
part
Spare part number: 1 600 A02 7W8
Position: 25
Availability: 1
Price group: 32
25.00 S$*
Prices shown are net prices excluding VAT
Nameplate
-
Spare part number: 1 601 11A 956
Position: 808
Availability: 1
Price group: 13
1.74 S$*
Prices shown are net prices excluding VAT
Sticker
-
Spare part number: 1 601 11C 49H
Position: 42
Availability: 1
Price group: 13
2.21 S$*
Prices shown are net prices excluding VAT
Manufacturer's nameplate
-
Spare part number: 1 601 11C 4DC
Position: 9
Availability: 1
Price group: 13
2.21 S$*
Prices shown are net prices excluding VAT
Housing
-
Spare part number: 1 605 806 62H
Position: 1
Availability: 1
Price group: 26
12.60 S$*
Prices shown are net prices excluding VAT
Housing
-
Spare part number: 1 605 806 62H
Position: 1
Availability: 1
Price group: 26
12.60 S$*
Prices shown are net prices excluding VAT
Rotor
-
Spare part number: 1 607 000 EC2
Position: 802
Availability: 1
Price group: 29
19.11 S$*
Prices shown are net prices excluding VAT
-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

Compression Spring
-
part
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
0.50 S$*
Prices shown are net prices excluding VAT
Stator
-
part
Spare part number: 1 619 P15 696
Position: 3
Availability: 1
Price group: 30
14.70 S$*
Prices shown are net prices excluding VAT
Countersunk-Head Screw M6X23 LEFTHAND THREADS
-
part
Spare part number: 2 603 421 229
Position: 107
Availability: 1
Price group: 11
1.68 S$*
Prices shown are net prices excluding VAT
Electronics Module
-
Spare part number: 2 607 202 513
Position: 6
Availability: 1
Price group: 38
57.75 S$*
Prices shown are net prices excluding VAT
-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

Torx Flat-Head Screw 3X16
-
part
Spare part number: 2 609 110 201
Position: 101
Availability: 10
Price group: 12
0.53 S$*
Prices shown are net prices excluding VAT
1
My Spare parts list

23 Parts found

Sort by
Description
Pos. 1 | Housing
1 605 806 62H
-
12.60 S$*
*Prices shown are net prices excluding VAT
Pos. 3 | Stator
1 619 P15 696
-
14.70 S$*
*Prices shown are net prices excluding VAT
Pos. 5 | Changeover Lever
1 600 A01 Z04
-
1.89 S$*
*Prices shown are net prices excluding VAT
Pos. 6 | Electronics Module
2 607 202 513
-
57.75 S$*
*Prices shown are net prices excluding VAT
Pos. 9 | Manufacturer's nameplate
1 601 11C 4DC
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 25 | Keyless Chuck
1 600 A02 7W8
-
25.00 S$*
*Prices shown are net prices excluding VAT
Pos. 32 | Switchover Unit
1 600 A01 2MM
-
1.05 S$*
*Prices shown are net prices excluding VAT
Pos. 42 | Sticker
1 601 11C 49H
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 45 | Gear Box
1 600 A01 ZT8
-
28.35 S$*
*Prices shown are net prices excluding VAT
Pos. 46 | Compression Spring
1 609 280 477
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 91 | Battery Pack
1 607 A35 0LA
-
-
Pos. 91 | Battery Pack
1 607 A35 0M7
-
117.60 S$*
*Prices shown are net prices excluding VAT
Pos. 91 | Battery Pack GBA 18V 2.0AH
1 607 A35 0MN
-
63.00 S$*
*Prices shown are net prices excluding VAT
Pos. 91 | Battery Pack
1 607 A35 0V8
-
66.06 S$*
*Prices shown are net prices excluding VAT
Pos. 101 | Torx Flat-Head Screw 3X16
2 609 110 201
-
0.53 S$*
*Prices shown are net prices excluding VAT
Pos. 107 | Countersunk-Head Screw M6X23 LEFTHAND THREADS
2 603 421 229
-
1.68 S$*
*Prices shown are net prices excluding VAT
Pos. 652 | Clip
1 600 A02 7W3
-
6.51 S$*
*Prices shown are net prices excluding VAT
Pos. 653 | Fast Charger
2 607 226 281
-
60.06 S$*
*Prices shown are net prices excluding VAT
Pos. 653 | Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V
2 607 226 283
-
54.60 S$*
*Prices shown are net prices excluding VAT
Pos. 653 | Fast Charger LAM GAL18V-20
2 607 226 289
-
54.60 S$*
*Prices shown are net prices excluding VAT
Pos. 653 | Fast Charger IND GAL 18V-40 220-240V / 4A
2 607 226 537
-
50.68 S$*
*Prices shown are net prices excluding VAT
Pos. 802 | Rotor
1 607 000 EC2
-
19.11 S$*
*Prices shown are net prices excluding VAT
Pos. 808 | Nameplate
1 601 11A 956
-
1.74 S$*
*Prices shown are net prices excluding VAT
* Prices shown are net prices excluding VAT
