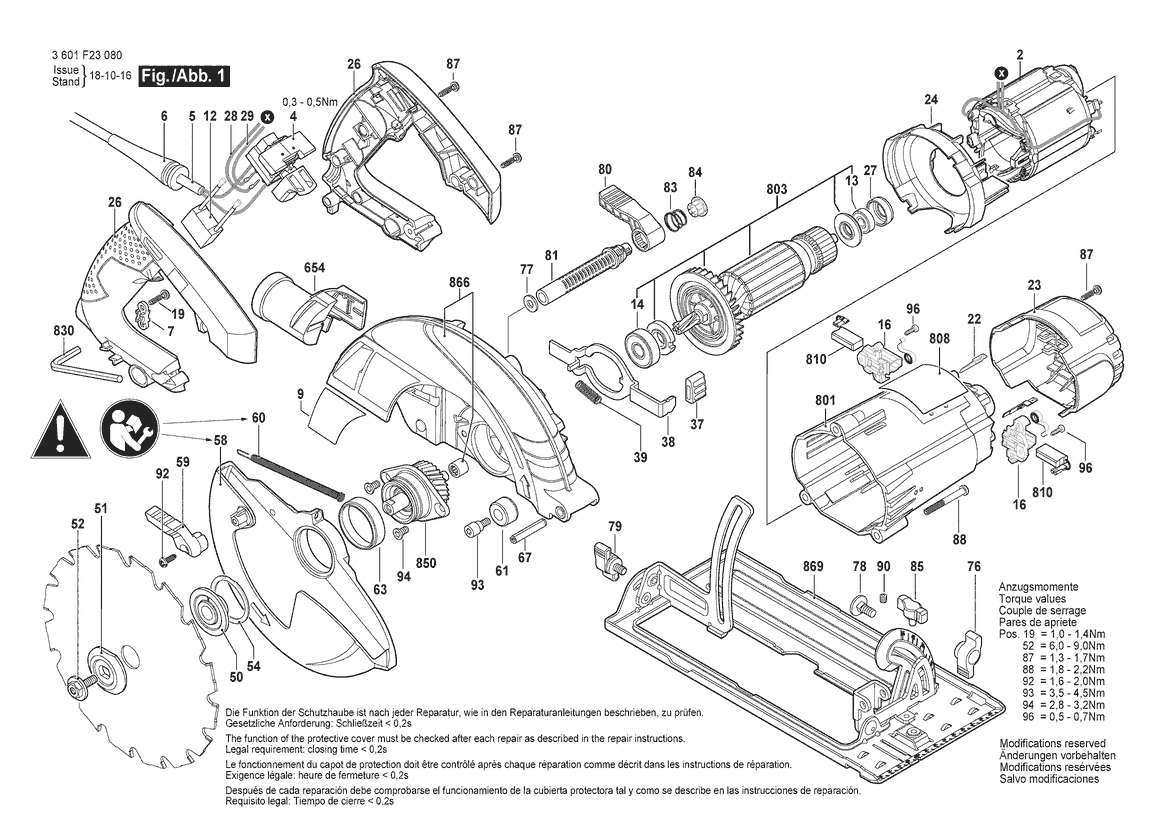

3 601 F23 0K0
Pivoting Blade Guard
-
Spare part number: 1 600 A00 XZ6
Position: 58
Availability: 1
Price group: -
-
Ball Bearing 7X19X6 MM
-
Spare part number: 1 619 P00 456
Position: 13
Availability: 1
Price group: -
-
Wing Screw BLACK
-
Spare part number: 1 619 P01 618
Position: 85
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 1 619 P01 642
Position: 39
Availability: 1
Price group: -
-
Screw
-
Spare part number: 1 619 P01 678
Position: 92
Availability: 1
Price group: -
-
Field 230V
-
Spare part number: 1 619 P04 474
Position: 2
Availability: 1
Price group: -
-
Adjusting Screw BLACK
-
Spare part number: 1 619 P04 540
Position: 90
Availability: 1
Price group: -
-
Vacuum Adapter
-
Spare part number: 1 619 P06 204
Position: 654
Availability: 1
Price group: -
-
Switch
-
Spare part number: 1 619 P06 206
Position: 4
Availability: 1
Price group: -
-
Round-Head Bolt
-
Spare part number: 1 619 P06 211
Position: 78
Availability: 1
Price group: -
-
Right Angle Plug
-
Spare part number: 1 619 P06 213
Position: 22
Availability: 2
Price group: -
-
End cap BLACK
-
Spare part number: 1 619 P06 218
Position: 23
Availability: 1
Price group: -
-
Baffle
-
Spare part number: 1 619 P06 219
Position: 24
Availability: 1
Price group: -
-
Set Of Handles
-
Spare part number: 1 619 P06 220
Position: 26
Availability: 1
Price group: -
-
Set Of Handles
-
Spare part number: 1 619 P06 220
Position: 26
Availability: 1
Price group: -
-
Cap
-
Spare part number: 1 619 P06 225
Position: 37
Availability: 1
Price group: -
-
Guide Bracket
-
Spare part number: 1 619 P06 226
Position: 38
Availability: 1
Price group: -
-
Rubber Ring
-
Spare part number: 1 619 P06 227
Position: 27
Availability: 1
Price group: -
-
Washer
-
Spare part number: 1 619 P06 230
Position: 50
Availability: 1
Price group: -
-
Locking washer
-
Spare part number: 1 619 P06 231
Position: 51
Availability: 1
Price group: -
-
Screw
-
Spare part number: 1 619 P06 232
Position: 52
Availability: 1
Price group: -
-
Lever
-
Spare part number: 1 619 P06 235
Position: 59
Availability: 1
Price group: -
-
Bumper BLACK
-
Spare part number: 1 619 P06 236
Position: 61
Availability: 1
Price group: -
-
Flange Bushing
-
Spare part number: 1 619 P06 237
Position: 63
Availability: 1
Price group: -
-
Locking washer
-
Spare part number: 1 619 P06 238
Position: 54
Availability: 1
Price group: -
-
Wing Nut
-
Spare part number: 1 619 P06 244
Position: 76
Availability: 1
Price group: -
-
Lever
-
Spare part number: 1 619 P06 245
Position: 80
Availability: 1
Price group: -
-
Screw
-
Spare part number: 1 619 P06 246
Position: 93
Availability: 1
Price group: -
-
Torx Oval-Head Screw
-
Spare part number: 1 619 P06 252
Position: 96
Availability: 2
Price group: -
-
Torx Oval-Head Screw
-
Spare part number: 1 619 P06 252
Position: 96
Availability: 2
Price group: -
-
Cable Clip
-
Spare part number: 1 619 P06 313
Position: 7
Availability: 1
Price group: -
-
Wing Screw
-
Spare part number: 1 619 P06 316
Position: 79
Availability: 1
Price group: -
-
Extension Spring
-
Spare part number: 1 619 P06 334
Position: 60
Availability: 1
Price group: -
-
Armature set 230V
-
Spare part number: 1 619 P06 345
Position: 803
Availability: 1
Price group: -
-
Carbon-Brush Set
-
Spare part number: 1 619 P06 346
Position: 810
Availability: 1
Price group: -
-
Carbon-Brush Set
-
Spare part number: 1 619 P06 346
Position: 810
Availability: 1
Price group: -
-
Motor Housing BLUE
-
Spare part number: 1 619 P06 372
Position: 801
Availability: 1
Price group: -
-
Bearing Cover Plate
-
Spare part number: 1 619 P06 374
Position: 14
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 619 P06 380
Position: 808
Availability: 1
Price group: -
-
Base Plate
-
Spare part number: 1 619 P06 391
Position: 869
Availability: 1
Price group: -
-
Gear
-
Spare part number: 1 619 P06 392
Position: 850
Availability: 1
Price group: -
-
Protective Cover
-
Spare part number: 1 619 P07 286
Position: 866
Availability: 1
Price group: -
-
Adjustment rod
-
Spare part number: 1 619 P07 620
Position: 81
Availability: 1
Price group: -
-
Brush Holder
-
Spare part number: 1 619 P13 417
Position: 16
Availability: 2
Price group: -
-
Brush Holder
-
Spare part number: 1 619 P13 417
Position: 16
Availability: 2
Price group: -
-
Offset Screwdriver
-
Spare part number: 1 619 P14 506
Position: 830
Availability: 1
Price group: -
-
Wire
-
Spare part number: 1 619 P15 969
Position: 28
Availability: 1
Price group: -
-
Wire
-
Spare part number: 1 619 P15 970
Position: 29
Availability: 1
Price group: -
-
Cover
-
Spare part number: 1 619 P17 212
Position: 84
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
Spare part number: 1 619 P31 104
Position: 9
Availability: 1
Price group: -
-
Spring BLACK
-
Spare part number: 1 619 X01 792
Position: 83
Availability: 1
Price group: -
-
Grommet Ø6,4-Ø7,2X76 MM
-
Spare part number: 2 600 703 017
Position: 6
Availability: 1
Price group: -
-
Torx Oval-Head Screw 4X12
-
Spare part number: 2 603 490 021
Position: 19
Availability: 2
Price group: -
-
Screw 4X16
-
Spare part number: 2 603 490 022
Position: 87
Availability: 8
Price group: -
-
Screw 4X16
-
Spare part number: 2 603 490 022
Position: 87
Availability: 8
Price group: -
-
Screw 4X16
-
Spare part number: 2 603 490 022
Position: 87
Availability: 8
Price group: -
-
Power supply cord I/BR 2,65M 2 X 1,0MM H05 VV-F
-
Spare part number: 2 604 460 277
Position: 5
Availability: 1
Price group: -
-
Countersunk-Head Screw
-
Spare part number: 2 610 924 687
Position: 94
Availability: 2
Price group: -
-
Screw
-
Spare part number: 2 610 925 864
Position: 88
Availability: 3
Price group: -
-
Plain Washer DIN 125-A 6,4-ST
-
Spare part number: 2 916 011 014
Position: 77
Availability: 1
Price group: -
-
Coiled Spring Pin DIN ISO 8750-6X35-ST
-
Spare part number: 2 917 800 253
Position: 67
Availability: 1
Price group: -
-
1
Spare parts in list
55 Parts found
Sort by
Description
Pos. 2 | Field 230V
1 619 P04 474
-
Pos. 4 | Switch
1 619 P06 206
-
Pos. 5 | Power supply cord I/BR 2,65M 2 X 1,0MM H05 VV-F
2 604 460 277
-
Pos. 6 | Grommet Ø6,4-Ø7,2X76 MM
2 600 703 017
-
Pos. 7 | Cable Clip
1 619 P06 313
-
Pos. 9 | Manufacturer's nameplate
1 619 P31 104
-
Pos. 13 | Ball Bearing 7X19X6 MM
1 619 P00 456
-
Pos. 14 | Bearing Cover Plate
1 619 P06 374
-
Pos. 16 | Brush Holder
1 619 P13 417
-
Pos. 19 | Torx Oval-Head Screw 4X12
2 603 490 021
-
Pos. 22 | Right Angle Plug
1 619 P06 213
-
Pos. 23 | End cap BLACK
1 619 P06 218
-
Pos. 24 | Baffle
1 619 P06 219
-
Pos. 26 | Set Of Handles
1 619 P06 220
-
Pos. 27 | Rubber Ring
1 619 P06 227
-
Pos. 28 | Wire
1 619 P15 969
-
Pos. 29 | Wire
1 619 P15 970
-
Pos. 37 | Cap
1 619 P06 225
-
Pos. 38 | Guide Bracket
1 619 P06 226
-
Pos. 39 | Compression Spring
1 619 P01 642
-
Pos. 50 | Washer
1 619 P06 230
-
Pos. 51 | Locking washer
1 619 P06 231
-
Pos. 52 | Screw
1 619 P06 232
-
Pos. 54 | Locking washer
1 619 P06 238
-
Pos. 58 | Pivoting Blade Guard
1 600 A00 XZ6
-
Pos. 59 | Lever
1 619 P06 235
-
Pos. 60 | Extension Spring
1 619 P06 334
-
Pos. 61 | Bumper BLACK
1 619 P06 236
-
Pos. 63 | Flange Bushing
1 619 P06 237
-
Pos. 67 | Coiled Spring Pin DIN ISO 8750-6X35-ST
2 917 800 253
-
Pos. 76 | Wing Nut
1 619 P06 244
-
Pos. 77 | Plain Washer DIN 125-A 6,4-ST
2 916 011 014
-
Pos. 78 | Round-Head Bolt
1 619 P06 211
-
Pos. 79 | Wing Screw
1 619 P06 316
-
Pos. 80 | Lever
1 619 P06 245
-
Pos. 81 | Adjustment rod
1 619 P07 620
-
Pos. 83 | Spring BLACK
1 619 X01 792
-
Pos. 84 | Cover
1 619 P17 212
-
Pos. 85 | Wing Screw BLACK
1 619 P01 618
-
Pos. 87 | Screw 4X16
2 603 490 022
-
Pos. 88 | Screw
2 610 925 864
-
Pos. 90 | Adjusting Screw BLACK
1 619 P04 540
-
Pos. 92 | Screw
1 619 P01 678
-
Pos. 93 | Screw
1 619 P06 246
-
Pos. 94 | Countersunk-Head Screw
2 610 924 687
-
Pos. 96 | Torx Oval-Head Screw
1 619 P06 252
-
Pos. 654 | Vacuum Adapter
1 619 P06 204
-
Pos. 801 | Motor Housing BLUE
1 619 P06 372
-
Pos. 803 | Armature set 230V
1 619 P06 345
-
Pos. 808 | Nameplate
1 619 P06 380
-
Pos. 810 | Carbon-Brush Set
1 619 P06 346
-
Pos. 830 | Offset Screwdriver
1 619 P14 506
-
Pos. 850 | Gear
1 619 P06 392
-
Pos. 866 | Protective Cover
1 619 P07 286
-
Pos. 869 | Base Plate
1 619 P06 391
-
* Prices shown are net prices including VAT
